Standard Bonded Foam Wall Pad

Standard Bonded Foam Wall Pad

UPC: 842299103853

Product Number: 4120

Product Weight 29.00lbs / 13.15kgs
Product Dimensions (HxWxL)
3.00" x 24.00" x 72.00"
7.62cm x 60.96cm x 182.88cm
Warranty 1 YEAR
Product Unit EACH

Standard Bonded Foam Wall Pad

Product Number: 4120

UPC: 842299103853

Product Description

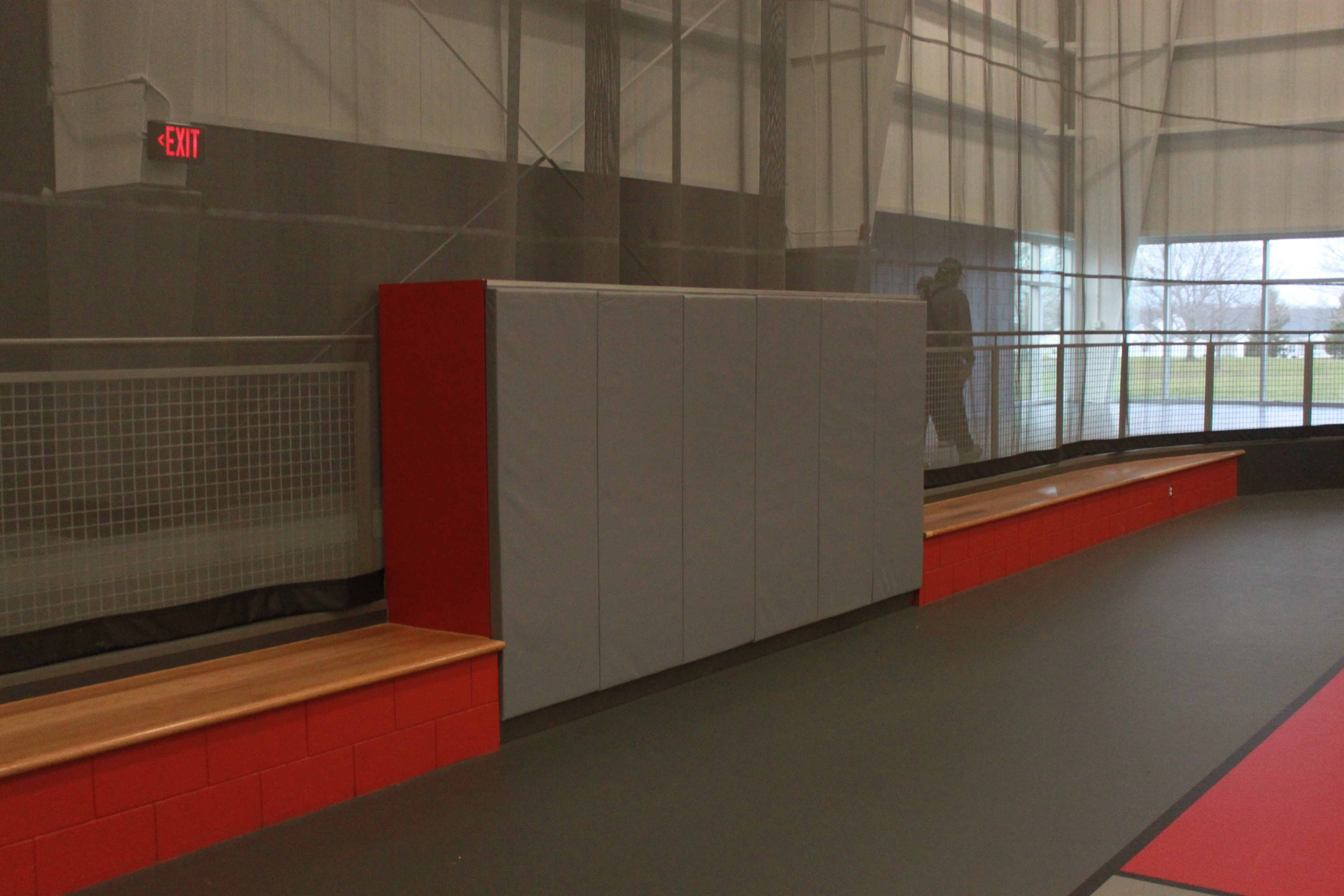

Provide safe wall surfaces for your facility with bonded polyurethane wall padding. The 4120 pad measures as a 2' x 6' x 2" segment which can be multiplied to cover the wall surface. Bonded foam pads pass the industry standard ASTM F2440-11 for impact safety, ensuring high quality protection for your heavily utilized play areas. Bonded wall pads can be customized with color and graphic options.
  • Impact bonded foam is recommended for areas with heavy play and short distances between court and wall.
  • 2" thick foam pad covered in 14-oz vinyl is 6' tall x 2' wide with 1" nailing lip on top and bottom.
  • Custom sizes and alternative attachment options available.

Additional Info

Wall padding standard size (Part number 4120-STD) shall be 6' [1.82 m] x 2' [0.9 m] with 1" [25.4 mm] nailing margin with height options (Part number 4120-NSD) available for both 7' [2.134 m] x 2' [0.9 m] and 8' [2.438 m] x 2' [0.9 m] with 1" [25.4 mm] nailing margin on top and bottom of each panel. Nailing margin reduces foam height from 6’ [1.8 m] to 5’-10” [1.77 m], 7’ [2.134 m] to 6’-10” [2.083 m], and 8’ [2.44 m] to 7’-10” [2.39 m] respectively. Pads shall be constructed using 2" [50.8 mm] thick 6 lbs. density bonded polyurethane foam cemented to 7/16" [11.11 mm] oriented strand board. Cover material shall be 14-ounce polyester laminated vinyl (19-ounce polyester laminated vinyl optional) stapled to backing every two inches. Vinyl to be flame retardant material, which meets NFPA 701, ASTM E84, and CSFM (California State Fire Marshall). Vinyl shall be available in white, yellow, orange, red, kelly green, forest green, royal blue, marine blue, navy blue, gray, black, burgundy, beige, and purple. Custom cutting and fitting of padding may be done in field to ensure proper fit. Furring strips by others.

Product tested per ASTM F1292-09 and meets all requirements of ASTM F2440-11.

Additional Specifications

Brand GARED
Product Storage Dimensions (HxWxL)
3.00" x 24.00" x 72.00"
7.62cm x 60.96cm x 182.88cm
Product Color VARIES
Product Material FOAM / VINYL / WOOD

Shipping Info

Shipping Weight 84.00 lbs / 38.10 kg
Shipping Dimensions (HxWxL)
7.00" x 50.00" x "
17.78cm x 127.00cm x 0.00cm
Shipping Method Truck
Shipping Class 70
