Hoopmaster Portable Basketball Backstop, 5' Boom

Hoopmaster Portable Basketball Backstop, 5' Boom

UPC: 842299106328

Product Number: 9405

Lead Time 4 Weeks
Warranty 10 Years on Backstop and Lift Mechanism
Product Unit EACH

Hoopmaster Portable Basketball Backstop, 5' Boom

Product Number: 9405

UPC: 842299106328

Product Description

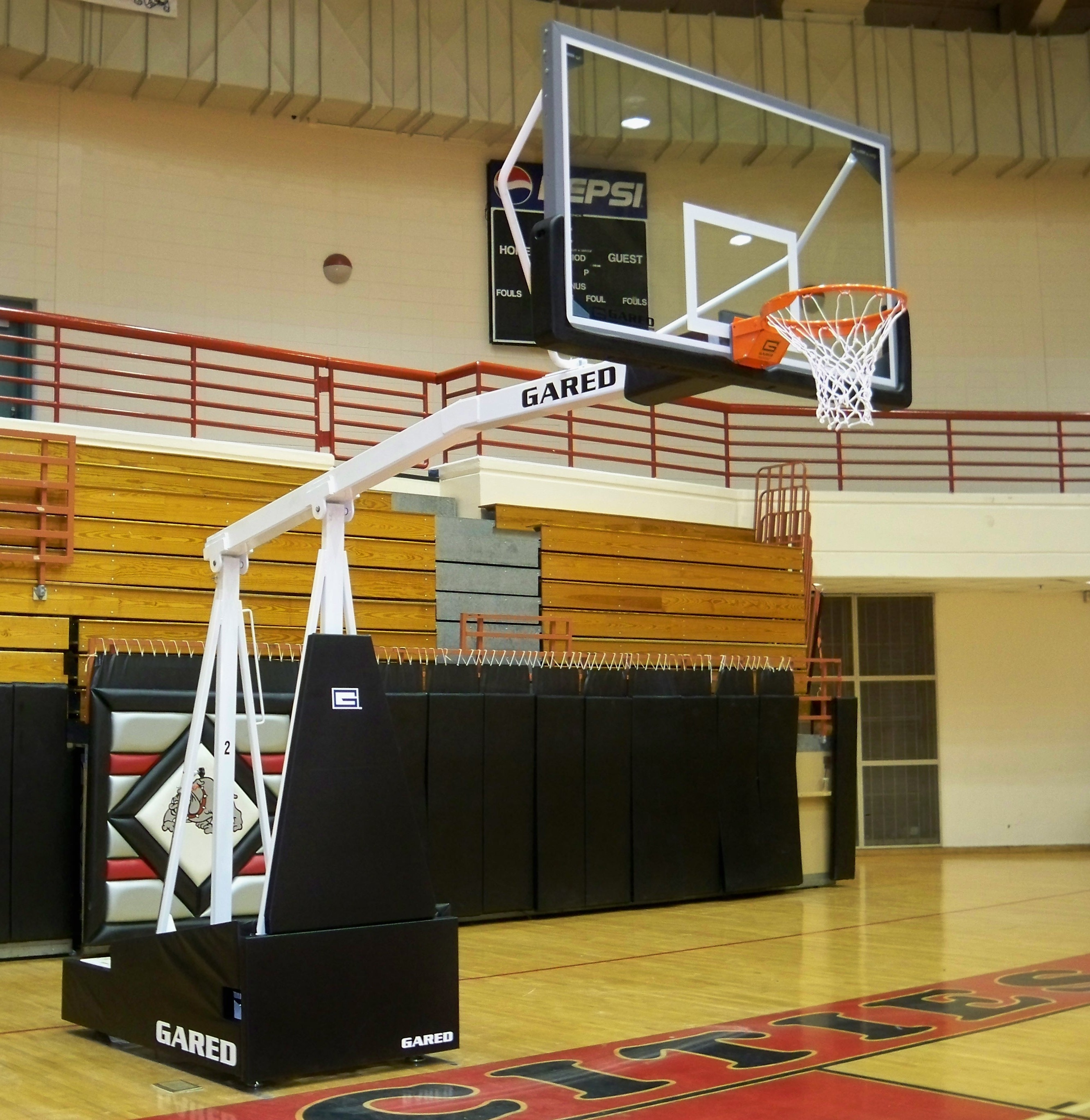

The 9405 Hoopmaster® is the most versatile portable basketball backstop available for high school level play. This spring-lift system can be easily lifted to competitive levels of play for athletes of all ages. The 9405 sports a 5' regulation boom directly attaching to breakaway rim for upmost glass backboard stability and a floor protection wheel lift system. The base is fully covered in vinyl padding for player safety and can be decorated to promote team and sponsor marketing.
  • Recommended Play Level: FIBA, NCAA, NFHS, NAIA, AAU
  • Tensioned spring mechanism designed for effortless lifting and lowering of unit
  • 5' boom extension between base of the unit and the rim
  • Complete system includes regulation LXP4200 board, 2500 rim, and PMCE bolt-on board padding
  • Includes floor anchors and 1000 lbs ballast weight concealed in the base

Product Options

Additional Info

This state-of-art Hoopmaster® portable basketball system uses tension spring technology for balanced and effortless lifting and lowering of the unit and the springs are concealed inside the base for safety and appearance. Designed for main court play in university, high school and professional arenas and approved by FIBA for Level 3 international competition. Available in 5' and 8’ boom extensions for all levels of play and adjustable at 8’, 9’ and 10’ heights. The Hoopmaster® comes with an official size (42” x 72”) shatter proof glass backboard, our original PRO-MOLD® backboard padding, and a positive lock breakaway goal. The base is fully padded on three sides with vinyl covered high density polyurethane foam. The front is similarly padded to a height of 7’. Boom pad and anchoring system are included with the unit. Shot clock supports are sold separately. 10 year Limited Warranty on all parts, Lifetime Limited Warranty on backboard included with the unit, 5 year Limited Warranty on PRO-MOLD® pads and 4 year on breakaway goal.

Hoopmaster® Features:

BACKBOARD: Official size 42” x 72” tempered glass backboard with a welded reinforced powdercoated steel frame (Model LXP4200). 1/2” tempered glass with fired in target and border for maximum durability. LED perimeter lights, #2137, are sold separately.

GOAL: Models 2500 Collegiate and 2500I Tournament positive lock breakaway goals come standard with these units for the domestic and international markets, respectively. Other breakaway goals are optional and available upon request.

PADDING: Durable GARED PRO-MOLD® backboard edge padding comes in a wide variety of colors. Standard color for system padding is royal blue; other standard colors are available at no additional cost. Custom logos for the front and side pads are available at an additional cost.

BALLAST: 1000 lbs (455 kgs) of enclosed ballast concealed in the base of the unit, welded closed.

HEIGHT ADJUSTABLE: Unique telescoping brace allows for preset heights of 8’, 9’ and 10’. Custom heights are available upon request.

ADJUSTABLE FLOOR PADS: Two floor pads are encased in steel supports for added stability, and are controlled by a screw-type mechanism that raises the unit off the wheels and adjusts the unit to exactly 10’ height.

FLOOR ANCHORING SYSTEM: Floor anchors and locater pins are included as standard. Specify floor type.

FINISH: The unit is powdercoated white. Other colors are available at additional cost.

TRANSPORT & STORAGE: Folds easily for compact storage with single non-marking polyurethane casters for easy transport.

Additional Specifications

Registration Number 3330761
Product Color Varies
Product Material Steel
Product Finish Powercoat
Country of Origin United States
Product Play Level AAU, FIBA, NAIA, NCAA, NFHS
Vertical Application Camp Recreation, Church Recreation, Community Recreation, High School Education, Military, Pay for Play Recreation

Shipping Info

Shipping Weight 2260.00 lbs / 1025.12 kg
Shipping Dimensions (HxWxL)
46.00" x 44.00" x 145.00"
116.84cm x 111.76cm x 368.30cm

30.00" x 50.00" x 72.00"
76.20cm x 127.00cm x 182.88cm
